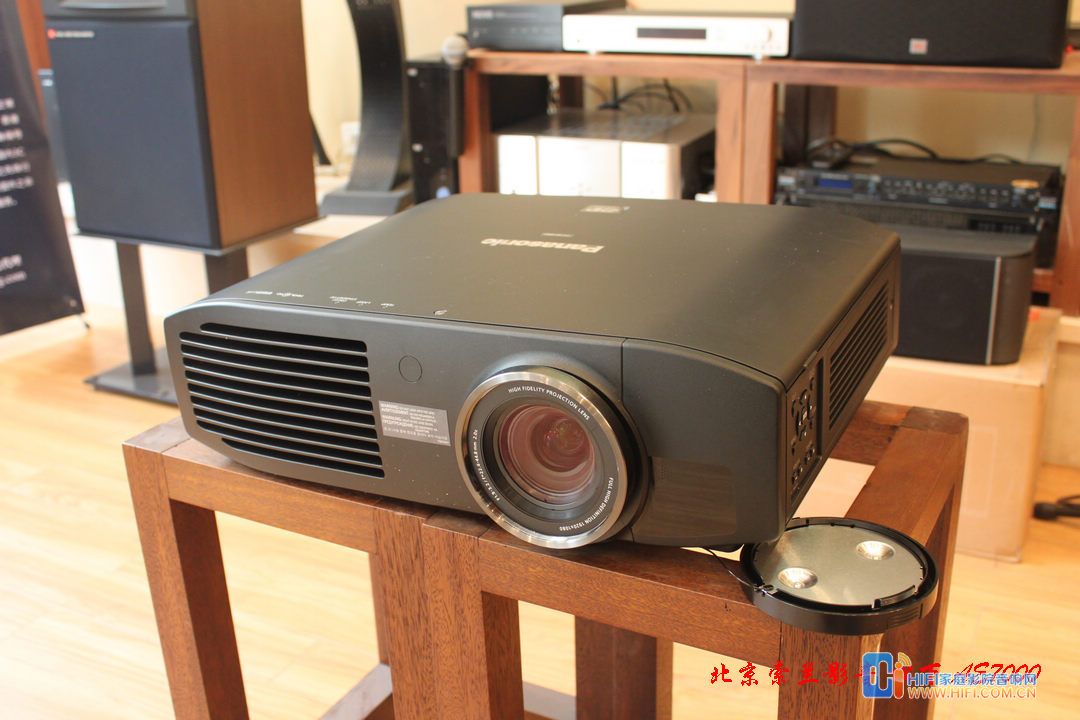

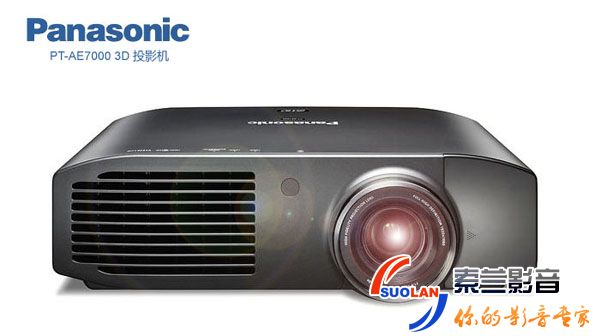

Panasonic（松下） PT- AE7000 3D投影機(停產)
http://www.wyke.cn/ 來源:索蘭影音 關鍵詞：松下PT- AE7000
2011年，松下公司推出了全新的3D高清投影機PT-AE7000EH，AE7000的光路引擎的核心，是一種全新的超高速LCD技術，支持極高的480Hz的刷新率——這是迄今已發布的第二快的成像技術的兩倍。
Full HD 3D家庭影院投影儀PT-AE7000EH正式面市。PT-AE7000EH具有1080p (1,920 x 1,080 pixel)分辨率，也是全世界第一臺使用480Hz驅動透明LCD面板的3D投影儀產品，并且支持3D顯示功能，同時還采用了自有Overdrive Technology技術，可以有效降低串擾，提高投影質量。
PT-AE7000EH的關鍵3D投影技術是由松下好萊塢實驗室（Panasonic Hollywood Laboratory）的工程師們協作開發的，這些工程師們也大量創作3D藍光光盤，并開發投影儀的智能鏡頭存儲（Intelligent Lens Memory）功能，擁有該項技術用戶可以輕松編程調試并獲得六個不同的變焦和對焦位置。
PT-AE7000EH高清3D家庭影院投影儀還支持300000:1(三十萬比一)對比度，同時它的亮度也達到了2000流明，另外它的3D功能還是比較強悍的，可以支持用戶將2D轉換為3D模式，即2-3D轉換功能，當然正如我們所知道的那樣轉的3D不如原生的3D好。
產品參數:
|
Model |
PT-AE7000EH |
|||
|
Power supply |
100–240 V AC, 50/60 Hz |
|||
|
Power consumption |
285 W (0.08 W in standby mode) |
|||
|
LCD*2 panel |
Panel size |
18.7 mm (0.74 in) diagonal (16:9 aspect ratio) |
||
|
Display method |
Transparent LCD panel (× 3, R/G/B) |
|||
|
Drive method |
Active matrix |
|||
|
Pixels |
2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels |
|||
|
Lamp*3 |
200 W UHM lamp (The lamp replacement cycle is up to 4,000 hours |
|||
|
Lens |
Powered zoom/focus lenses (1.35:1–2.70:1), F 1.9–3.2, f 22.4–44.8 mm |
|||
|
Projection size (diagonal) |
2D projection |
1.02–7.62 m (40–300 inches) |
||
|
3D projection |
1.02–5.08 m (40–200 inches) |
|||
|

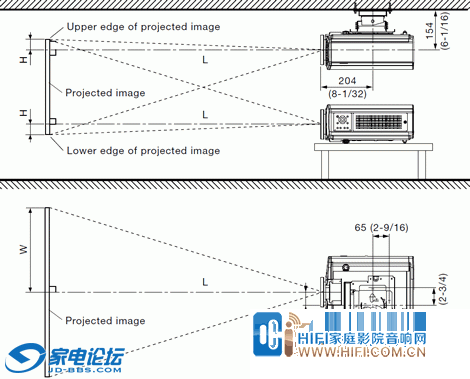

Throw distance |
1.16–18.08 m (3 ft 10 in to 59 ft 4 in) |
|||
|
Colors |
Full color (1,073,741,824 colors) |
|||
|
Brightness*5 |
2,000 lm*6 |
|||
|
Center-to-corner uniformity ratio*5 |
85% |
|||
|
Contrast ratio*5 |
300,000:1*7 (full on/full off) |
|||
|
Resolution |
1,920 × 1,080 pixels |
|||
|
Scanning frequency |
RGB |
fH: 15 kHz–74 kHz, fV: 24 Hz–85 Hz, |
||
|
YPBPR (YCBCR) |
525i (480i): fH 15.75 kHz; fV 60 Hz, |
625i (576i): fH 15.63 kHz; fV 50 Hz, |
||
|
Video/S-Video |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] |
|||
|
Optical axis shift*8 |
Vertical: ±100%, horizontal: ±26% |
|||
|
Keystone correction range |
Vertical: approx. ±30°*9 |
|||
|
Installation |
Ceiling/desk, front/rear (menu selection) |
|||
|
On-screen menu languages |
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, |
|||
|

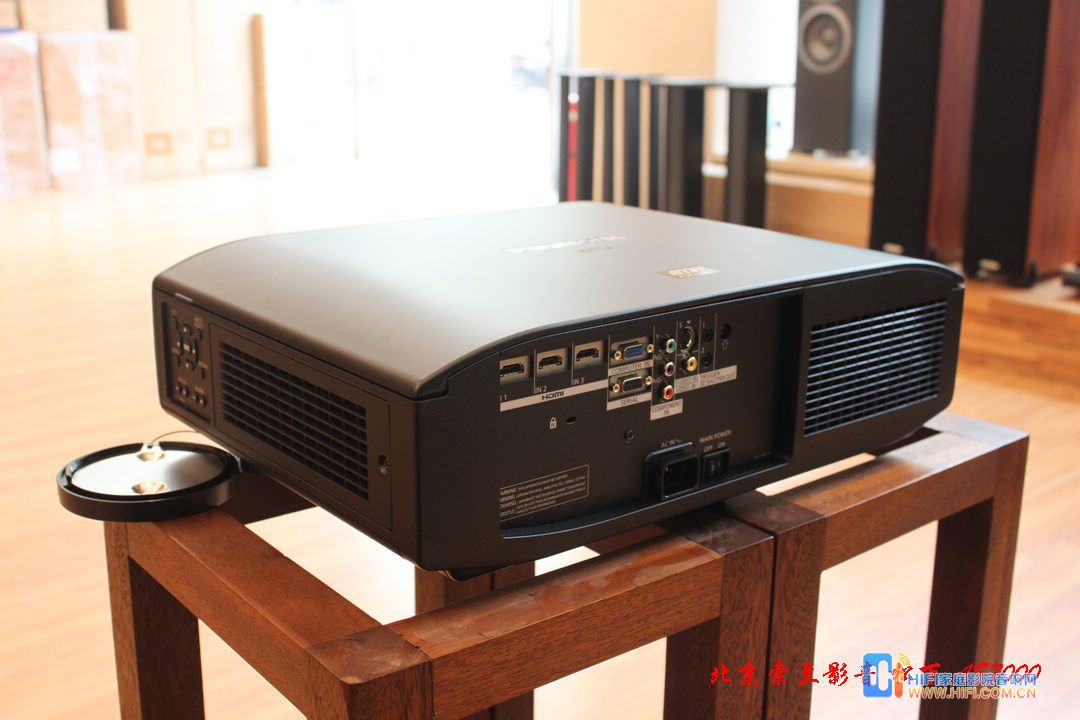

Terminals |
HDMI IN |
HDMI connector × 3, HDMI™ (Deep Color, x.v.Color™*10, CEC*11 ), |
||
|
COMPUTER (RGB) IN |
D-sub HD 15-pin (female) × 1 |
|||
|
|
RGB signal |
R, G, B: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms, |
||
|
YPBPR/YCBCR signal |
Y: 1.0 Vp-p (including sync signal), PB/PR: 0.7 Vp-p, 75 ohms |
|||
|
COMPONENT IN |
RCA pin × 3 (YPBPR/YCBCR) |
|||
|
|
Y |
1.0 Vp-p, 75 ohms |
||
|
PB/CB, PR/CR |
0.7 Vp-p, 75 ohms |
|||
|
TRIGGER IN / TRIGGER OUT / |
M3 × 2, 12 V, max. 100 mA |
|||
|
VIDEO IN |
RCA pin × 1 |
|||
|
S-VIDEO IN |
Mini DIN 4-pin × 1 |
|||
|
SERIAL IN |
D-sub 9-pin × 1 for external control (RS-232C compliant) |
|||
|
Power cord length |
3.0 m (9 ft 10 in) |
|||
|
Cabinet materials |
Molded plastic (PC+ABS) |
|||
|
Dimensions (W × H × D) |
470 mm × 151 mm × 364 mm*12 (18-17/32? × 5-15/16? × 14-11/32?)*12 |
|||
|
Weight*13 |
Approx. 8.7 kg (19.2 lbs) |
|||
|
Operation noise*5 |
22 dB (lamp power: ECO) |
|||
|
Operating temperature |
0°–40°C (32°–104°F)*14 |
|||
|
Operating humidly |
20%–80% (no condensation) |
|||
|
Remote control unit |
Power supply |
3 V DC (AA/R6 type battery × 2) |
||
|
Operation range*15 |
Approx. 7 m (23 ft) when operated from directly in front of the signal receptor |
|||
|
Dimensions |
48 × 138 × 28 mm |
|||
|
Weight |
Approx. 125 g (4.4 oz) (including batteries) |
|||
|
Supplied accessories |
Power cord (× 1) (× 2 for PT-AE7000EA) |
|||
|
Optional accessories |
Replacement |
ET-LAA310 |
||
|
Ceiling mount bracket |
ET-PKA110H (for high ceilings) |
|||
|
ET-PKA110S (for low ceilings) |
||||
|
3D IR transmitter |
ET-TRM110 |
|||
|
3D Eyewear |
TY-EW3D3L (large size)*16 |
|||
*1
Product numbers vary depending on the market. PT-AE7000 is the product number for areas outside of Europe, and PT-AT5000 is the product number within Europe.
*2
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
*3
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
*4
The values above are maximum values when they are used in cycles of being turned on for 2 hours and off for 0.25 hours. When the lamps are turned on and off more frequently, the lamp replacement cycle is shortened. The usage environment affects the lamp replacement cycle.
*5
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*6
In dynamic mode, with dynamic iris on.
*7
In cinema 1 mode, with dynamic iris on.
*8
Shift range is limited during simultaneous horizontal and vertical shifting.
*9
When a 3D signal is being input or when a 2D signal is converted to 3D, the keystone correction does not function.
*10
Effective in Rec. 709 picture mode.
*11
CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
*12
With legs at shortest position.
*13
Average value. May differ depending on models.
*14
When [HIGH ALTITUDE MODE] is set to [ON]: 0°C – 35°C (32°F–95°F)
*15
Operation range differs depending on environments.
*16
If you do not have a Panasonic 3D TV that supports 3D video, use a SANYO eneloop Mobile Booster KBC-L2 series to charge your Eyewear.
The code that follows KBC-L2 may differ depending on the country of purchase. The code at the end of the model number of 3D Eyewear may
differ depending on the country of purchase.
產品咨詢電話:13321154490 張先生

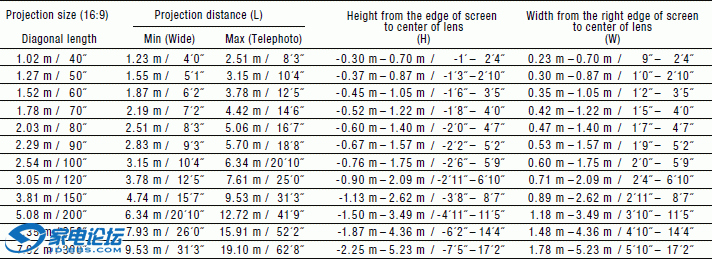

16:9

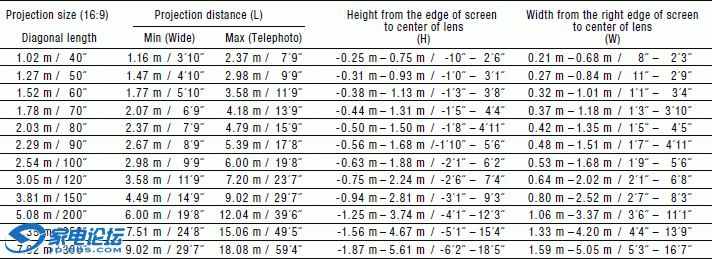

2.35:1
