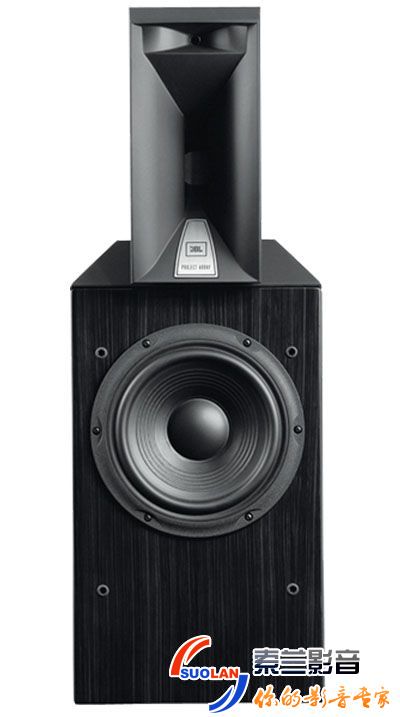

JBL 800 ARRAY 書架音箱

http://www.wyke.cn/ 來源:索蘭影音關鍵詞：JBL 音箱 800 家庭影院

為了在一流的家庭影院和音樂系統中呈遞非凡的音效，JBL 的 Project Array™ 款型采用了直接源自公司的旗艦 K2® Series 揚聲器和專業錄音棚監聽器的技術。中心聲道揚聲器配置雙 200mm (8") Aquaplas 處理紙漿錐盆低音揚聲器；435AL-1 75mm (3") Aquaplas 處理鋁圓頂壓縮式驅動單元，安裝在垂直號角中；045Ti 25mm (1") 純鈦壓縮式驅動單元，安裝在 SonoGlass® 恒向性號角中。雙低音驅動單元安裝在獨立梯形外殼中的角型擋板上

800 array裝載有全新改良設計的大型號角中/高音，揚聲器外型非常華麗，造工精致，號稱達到了jbl數十年前雄霸專業音響級時的最高水平，箱體的造工非常出色。

JBL 800 ARRAY 書架音箱

Description	3-Way, 200mm (8") Bookshelf Speaker
Series	Project Array
Finish	Black Gloss
Speaker Configuration	Array 8: 200mm (8") polymer-treated pulp-cone driver with 38mm (1-1/2") copper edge-wound voice coil on aluminum former. 045Ti: 25mm (1") puretitanium compression driver. 175Nd-3: 44mm (1-3/4") Aquaplas-treated aluminumdome compression driver.
Frequency Response	55Hz – 40kHz
Power Handling	200 Watts
Max. Recommended Amplifier Power	200 Watts
Low-Frequency Transducer	Array 8 8" polymer-treated pulp-cone driver with rubber surround, 1-1/2" copper edge-wound voice coil and ferrite motor assembly, mounted in a trapezoidal enclosure
High-Frequency Transducer	175Nd-3 1-3/4" Aquaplas-treated aluminum-dome compression driver with aluminum edge-wound voice coil and neodymium motor assembly, mounted in a vertical SonoGlass™ constant-directivity horn
Ultrahigh-Frequency Transducer	045Ti 1" Pure-titanium compression driver with aluminum edge-wound voice coil and 2" neodymium motor assembly, mounted ina SonoGlass™ constant-directivity horn
Sensitivity (2.83V/1m)	88dB
Nominal Impedance	8 Ohms
Dimensions (H x W x D)	743mm x 273mm x 356mm / 29-1/4" x 10-3/4" x 14"
Weight	18kg / 40 lb
